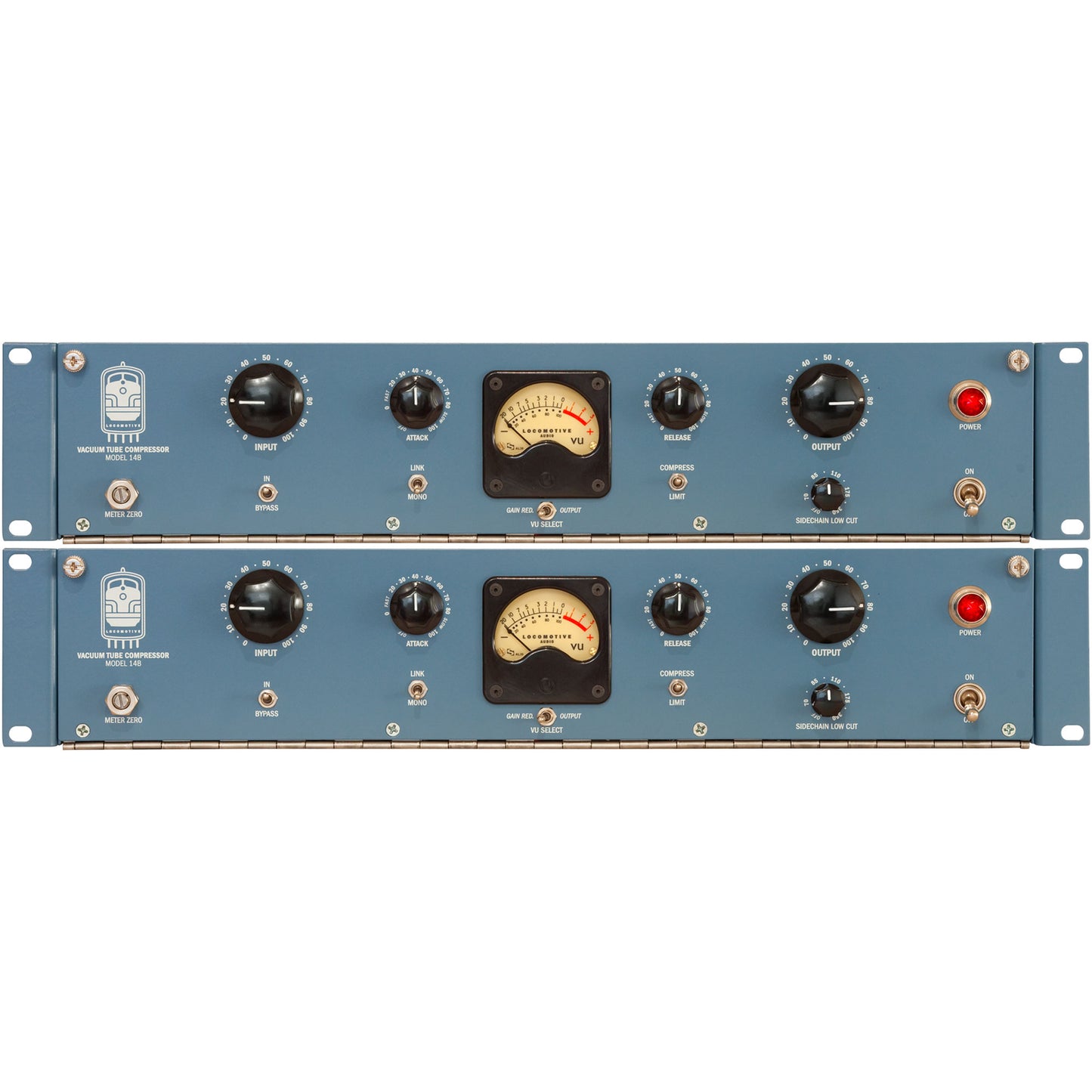

Locomotive Model 14B Vacuum Tube Compressor Shop all Locomotive Audio
Usually ships to you within 1-2 weeks.
Couldn't load pickup availability
Looking for VAT free checkout?
Looking for VAT free checkout?
Get in touch with us and we'll send you a checkout link without VAT, if you're business registered in the EU.
Found a better price online?
Found a better price online?
Let us know and we'll do our best to match it.
Product Description
Inspired by legendary vintage compressors like the 175B, RCA BA-6A, and Collins 26U, the Locomotive Audio Model 14B is a single-channel vacuum tube compressor that will transport you back in time while adding its own modern twists.
Experience the best of classic compressors as the Model 14B combines the lightning-fast attacks of the 175B with the smooth, polished output of the Gates Sta-Level. The result? A truly authentic vintage tone that will captivate your ears.
The Model 14B is built to deliver excellence in sound reproduction. It features super-premium MuMetal shielded input and interstage transformers, ensuring pristine signal integrity and exceptional sonic performance. Not to mention, the custom output transformer adds its own touch of brilliance to your audio.
Embrace the convenience of modern features without sacrificing vintage charm. The Model 14B incorporates a low-frequency cut option to prevent excessive low-end triggering, allowing you to sculpt your sound with precision and finesse.
Take your creativity to new heights by linking two Model 14B units together for stereo operation. Seamlessly process your stereo room mics, overheads, or inject magic into your mix bus. The possibilities are limitless.
FEATURES
- Stereo Link switch
- Sidechain Low Cut filter control: Off and 70-350Hz
- Hard-wire bypass switch
- Compression turned off with full counterclockwise attack position, switching to line amplifier
- Two position Compress-Limit Switch
- Two position VU meter switch: Gain Reduction - Output
- 6BC8 balance adjustment on interior of unit
- Custom Sifam backlit VU meter
- XLR input and output connections
- Custom MuMetal shielded input and interstage transformers
- Custom output transformer
- Hand-built in USA
- Heavy 16 gauge steel chassis
- 115v/230v AC mains option on rear
- Lifetime warranty parts and labor
- Tubes: (1) 6BC8, (1) 12AY7, (2) 6V6s
- Input load impedance: 5kΩ
- Output impedance: <1kΩ
- Variable Attack: (300 µS - 20 mS)
- Variable Release: (100 mS - 2 Sec)
- Compression (4:1 ratio) or Limiting 10:1 ratio)
- Frequency response: 20Hz-20kHz
- THD+N: <1%
- S/N ratio: >70dB
- Dimensions: 19"w x 3.5"h x 10"d (2u rackspace)
- Shipping Weight: 20 lbs.
- Power Consumption (120/240VAC): 42 watt
